LONG STRAIGHT LINE SKATE 20 TON CAPACITY WITH POLY COATED STEEL ROLLERS - Part #: HBB-100-P

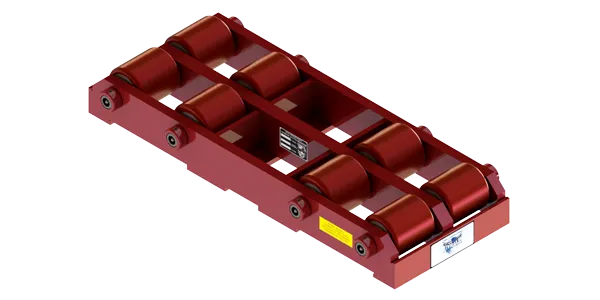

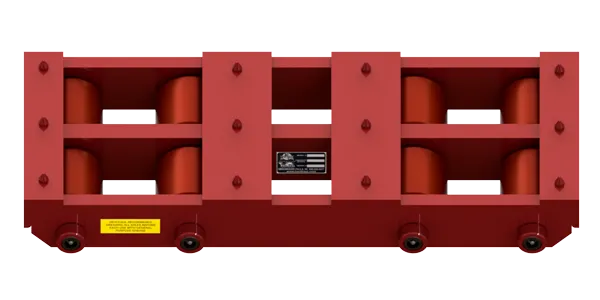

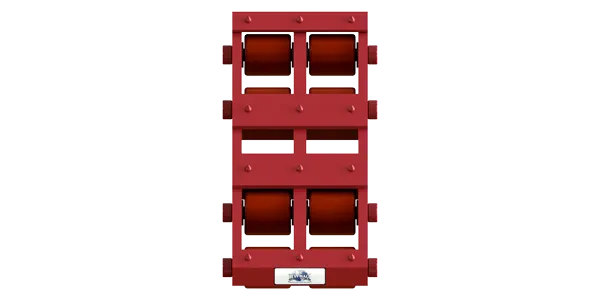

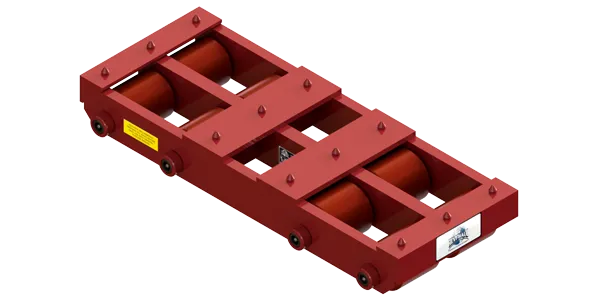

This Hevi-Haul Skate is a low profile roller dolly designed for straight line moves with maximum load distribution, stability, and climbing ability. The HBB-100P works best on floors free of debris. It features a total of four 3-1/4" Diameter Polyurethane Coated Rollers on the front and back axles and four 3-1/2" Diameter Polyurethane Coated Rollers on the two center axles. The frame is constructed of all steel and fully welded to take decades of abuse in the field. Polyurethane Coated Rollers are interchangeable with Steel Rollers for applications where the moving surface is in poor condition. With Steel Rollers this model increases to a 50 ton per Skate capacity.
| Capacity: 20 Tons (40,000 lbs.) | Roller Material: Poly Coated Steel |
| Length: 28" | Width: 12" |
| Height: 4-5/8" | Weight: 121 lbs. |
| Color: Hevi-Haul Red |
|
Coefficient of Friction: Load x .05 = Force Required to Move*
